File Relay vs. Encryption

When a Front-end server in the DMZ relays file requests to a Front-end server on the internal network, the traffic between the Base Agent and the servers stays protected all the way.

In this example, Base Agent 2 communicates with Frontend server 2 in the DMZ. Frontend server 2 has no access to a management server, so it relays all file requests to Frontend server 1 on the inside of the DMZ. See Relaying files.

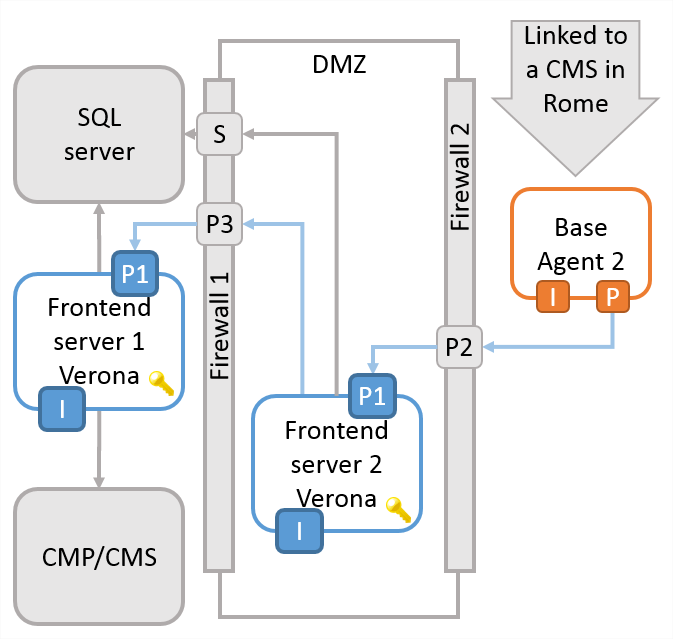

Diagram: Base Agent 2 connects to Frontend server 2 in the DMZ, which relays file requests through the internal firewall to Frontend server 1 on the internal network

How relayed requests are protected

Every request from the Base Agent is authenticated by the Front-end server that handles it. A request can’t be reused.
When Frontend server 2 relays a file request, Frontend server 1 authenticates the request again, as if it came directly from the Base Agent.

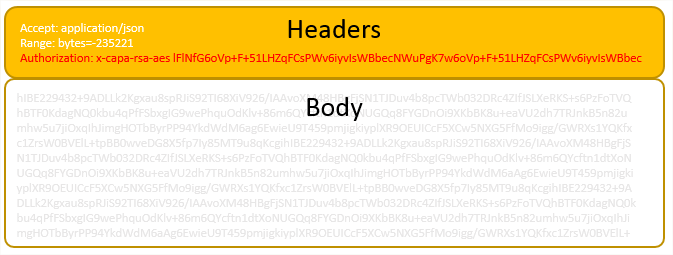

File contents are encrypted between the Base Agent and Frontend server 1. Frontend server 2 passes the data on without decrypting it.

Recommendations

Use HTTPS URLs for the Front-end servers, especially for the public URL. See Use HTTPS in Backend, Frontend & OS Deployment Service.
Make sure the redirect in the internal firewall points to the public port of Frontend server 1, not to its internal port, as described in Relaying files.
