CapaInstaller Network Port Reference

Use this page to plan firewall rules between CapaInstaller servers, managed devices, and the internet.

Important

The ports below are the default values. When you deploy a service, the Service Deployment wizard suggests the default port, and you can change it. If your organization uses other ports, open those instead.

If you have other isolated zones, for example a separate Wi-Fi zone, a DMZ, or an offsite hosting zone, open the ports for those zones too.

Find the ports your services use

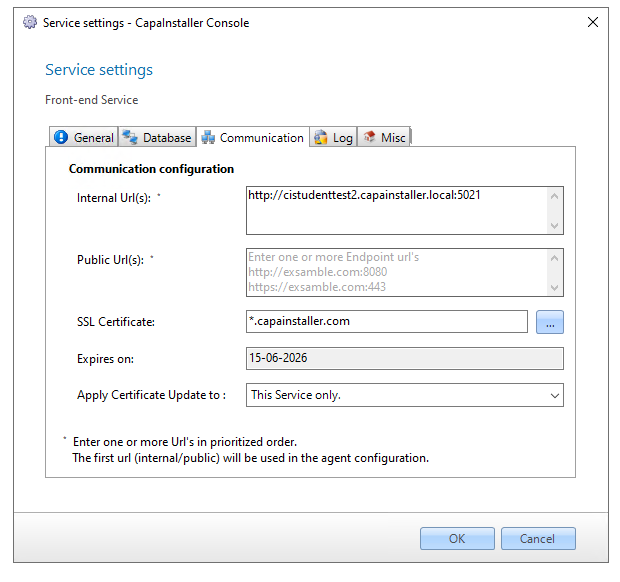

The ports in use are part of each service’s URLs. In System Administration, right-click a Front-end, Back-end, or OS Deployment service, select Service Settings, and open the Communication tab. The URL fields, such as Internal Url(s), show each URL the service listens on, including the port.

CapaInstaller services

Service	Default port	Protocol	Notes
Front-end service, internal URL	5021 (HTTP) or 443 (HTTPS)	TCP	Main address that agents use inside the organization.
Front-end service, public URL	5022 (HTTP) or 443 (HTTPS)	TCP	Fallback address for agents outside the firewall. See Ports and encryption.
Back-end service	5023 (HTTP) or 443 (HTTPS)	TCP	See Back-end Service.
OS Deployment service	5030 (HTTP) or 443 (HTTPS)	TCP	See OS Deployment Service.
Data Connection Service	5026	TCP	See Data Connection Service.
Mobile Device Management service	443 (HTTPS)	TCP	See MDM Network Ports for the full list of device management ports.
Self Service Portal	9443 (HTTPS)	TCP	See Working with Self Service Portal.

To switch a service from HTTP to HTTPS, see Use HTTPS in Backend, Frontend & OS Deployment Service.

OS deployment and PXE boot

Function	Port	Protocol	Notes
TFTP	69	UDP	Devices download the boot files during PXE boot.
DHCP (server)	67	UDP	Used by the DHCP proxy service.
DHCP (client)	68	UDP	Used by the DHCP proxy service.
Alternative DHCP listener	4011	UDP	Used when the DHCP proxy runs on the same server as the DHCP service.

For more information, see DHCPproxy service.

Wake On LAN

Function	Default port	Protocol	Notes
Wake On LAN requests	40000	UDP	You can change the port in System Administration options.

SQL Server

The CapaInstaller Console, the Setup Wizard, and the CapaInstaller services connect to the CapaInstaller database on SQL Server. Open the port that your SQL Server instance listens on, which is TCP 1433 for a default instance. If the instance uses another port, the Back-end service also needs the SQL Server Browser service, which uses UDP 1434.

CapaInstaller Console

The CapaInstaller Console uses RPC, WMI, and SMB to deploy services and run administrative tasks on servers and devices. See CapaInstaller Console Network Communication.
