Creating an UEFI boot image

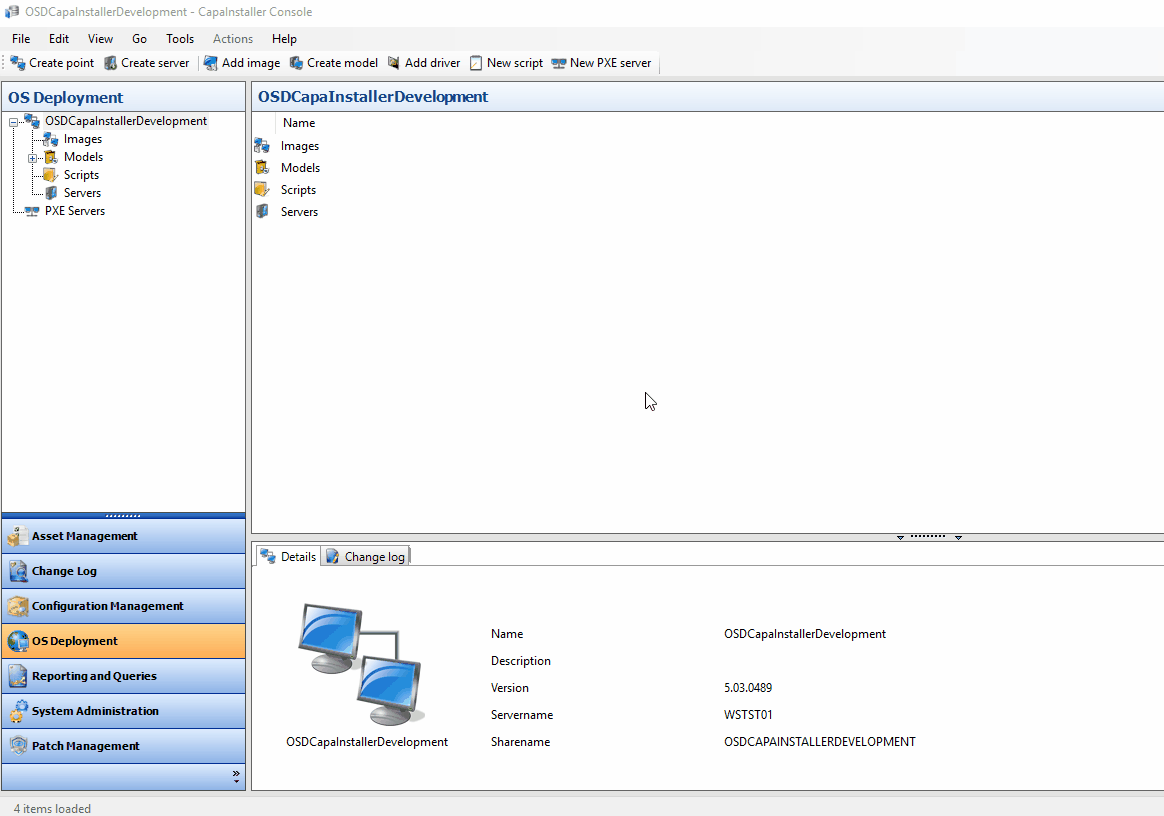

• Right Click on the OSD point and choose Boot Image —> Create Boot file…

• ChooseCreate Boot Image for 32-bit UEFI systems or Create Boot Image for 64-bit UEFI systems



Caution

• CapaInstaller uses DISM to create UEFI boot images. The DISM log file can be found at C:\Windows\Logs\DISM\dism.log

• Some Windows PE feature packs are required to build a CapaInstaller Boot Image, but others are optional. Feature packs can differ according to device types.
  Read more about WinPE feature packs here: Windows PE Optional Components Reference
