APN Payload
Description
Section titled “Description”This payload can be used to allow a device to connect through a specified Access Point Name

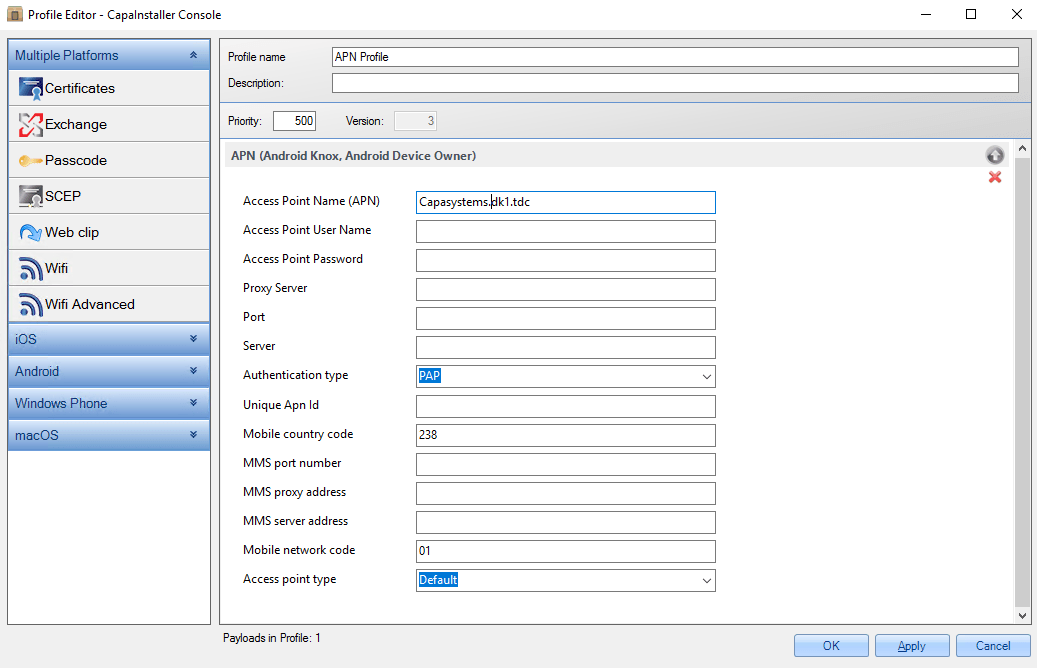

How to configure:
Section titled “How to configure:”| MANDATORY | CONFIGURATION | DESCRIPTION | EXAMPLE |
|---|---|---|---|
| Yes | Access Point Name (APN) | The name of the Access Point for which to connect. | internet |
| Access Point User name | This string specifies the user name for this APN. If the access point needs user authentication, the user name must be written here. | ||
| Access Point Password | The password for the user for this APN. If the access point needs authentication, the password must be written here. | ||
| Proxy Server | The IP address or URL of the APN proxy. If access goes through a proxy server, the URL must be given here. | http://example.com | |
| Port | The port number for the APN proxy. If access goes through a proxy server, the proxy server port must be written here. | Port number | |
| Server | This setting references a Wireless Application Protocol (WAP) gateway server for phones that cannot access or render standard websites. If access goes through a WAP gateway server, the URL must be given here. | ||
| Yes | Authentication type | Must contain either PAP, CHAP, or PAP or CHAP. Defaults to None. - Not Set - None - PAP - CHAP - PAP or CHAP | PAP or CHAP |
| Yes | Mobile country code (MCC) | MCC is used in combination with a mobile network code (MNC) to uniquely identify a mobile network operator (carrier) using the GSM If the access point needs MCC, it must be written here, otherwise the default sim MCC will be selected. | Mobile Country Codes 238 for Denmark |
| Yes | Mobile network code (MNC) | MNC is used in combination with a mobile country code (MCC) to uniquely identify a mobile network operator (carrier) using the GSM If the access point needs MNC, it must be written here, otherwise the default sim MNC will be selected. | National Operators (Denmark) 01 (TDC) |
| MMS port number | The port used by the MMS proxy. If access goes through a proxy server, the proxy server port must be written here. | Port number | |
| MMS proxy address | Multimedia Messaging Server (MMS) proxy address. This is an HTTP proxy server for MMS traffic. If access goes through a proxy server, the URL must be given here. | http://example.com | |
| MMS server address (MMSC) | MMSC. This is a multimedia messaging service server for MMS traffic. MMS succeeded SMS for sending larger messages with multimedia content, such as pictures or videos. If access goes through an MMSC server, the URL must be given here. | ||
| APN type | This setting must match the carrier’s intended use for the access point. APN service specifiers must match the wireless carrier’s published definitions: - MMS. Multimedia traffic goes through this access point. - default. All traffic, including multimedia, goes through this access point. - supl. Secure User Plane Location is associated with assisted GPS. | default |
