How to install Outlook App on an iOS device and configure Outlook using AppConfig

This article describes how to install the MS Outlook App and use AppConfig to setup Outlook for the linked user. It sets up email, calendar, and contacts in Outlook. Synchronization to the local contacts app depends on the system and the device.

Important

What is AppConfig?

AppConfig is a standard approach for app configuration and management introduced by the AppConfig Community. A group of leading Enterprise Mobile Management providers and app developers, who have come together to make it easier for developers and customers to drive mobility in business.

• Prerequisites :

An iOS device and an active AD user with Exchange or Office 365 email linked to the device. On iOS, an App Store account is required, unless you deploy Outlook as a VPP app. The example screenshots use a test user in an on-premises Exchange environment.

• The Appconfig keys to be used:

The AppConfig keys used to configure MS Outlook are shown in the table below. It is the minimum set of keys that can be used to configure the Outlook app. The “$Email$” and “$LoginName$” means that the linked user’s email and login name will be used (like $user in Windows).

Key	Type	Value
com.microsoft.outlook.EmailProfile.EmailAccountName	String	Name $LoginName$
com.microsoft.outlook.EmailProfile.EmailAddress	String	$Email$
com.microsoft.outlook.EmailProfile.ServerHostName	String	Exchange server / office365
com.microsoft.outlook.EmailProfile.EmailUPN	String	$Email$
com.microsoft.outlook.Contacts.LocalSyncEnabled	Boolean	True / (False)

• How to install the Outlook app with Appconfig for iOS:

Step	To do
1	Go into your Configuration Management Point
2	Expand your point, expand “Application and Packages”, and right-click “Device Applications”, and click “Create application”.

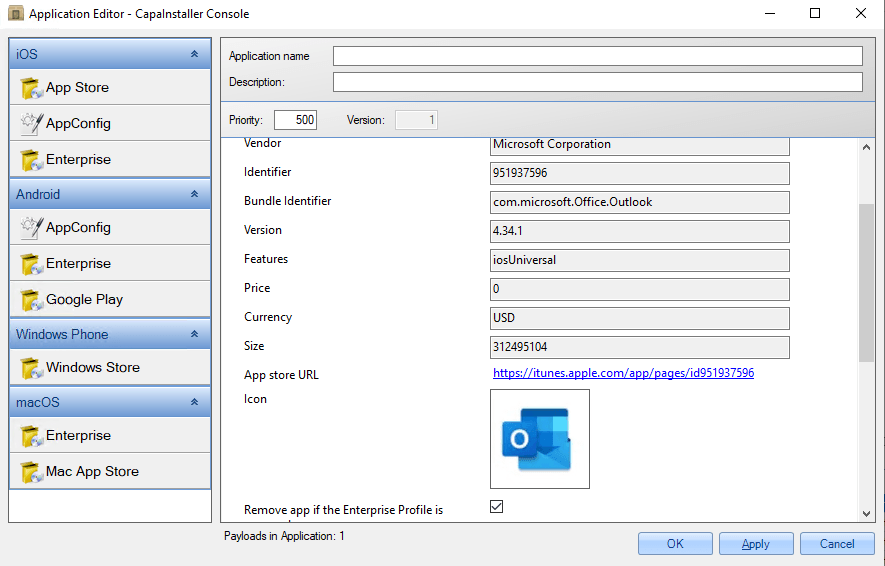

3	First, click on App Store for iOS. Search for “outlook”, and click the Outlook application. When you have done that, add AppConfig for iOS.

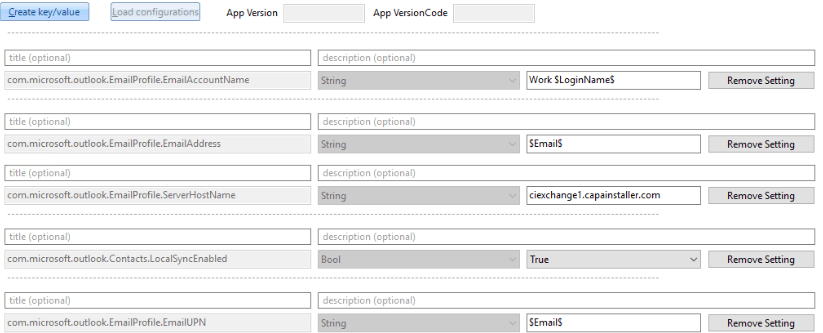

• The Appconfig keys and values visual:

Step	To do
1	Click “Create Key/Value”. Paste the AppConfig keys, select type “String” and type the value. Do this for all the keys in the table.

• Link the profile to device

Step	To do
1	Link the profile to the device and wait for Outlook to be installed on the device. After the app has been installed, the keys and values are applied.

• Installation and setup on device

  A popup on the device will appear and ask you to install the Outlook app (if it is a VPP App on a supervised device, Outlook will be installed without prompting). After the app has been installed, click the icon to start the setup wizard.

Step	To do
1	In the Outlook Setup Wizard: On 1 Account Found, check that the email is correct. Then click Add Account
2	Type the password and click on Sign In:
3	A popup will appear to allow the Outlook app to access the Contact app. Click OK to allow access.
4	Click on Maybe Later to complete Outlook setup:
5	Click OK to allow Outlook to access contacts.
6	Click Turn On to enable notifications.
7	Click on Allow to get notifications:
8	Outlook app is now synchronized with inbox, contacts, and calendar. Ready for use.
