Dashboard Relations

Relational Dashboard is a feature that provides the end-user with an easy navigation to the next relevant dashboard, continuing with the same set of parameters as the board he was already using.

Whenever a widget has an object link or the icon  present, the Related dashboards popup menu is available on left-mouse-click.

After this, simply click and the named dashboard will open in a new tab.

Important

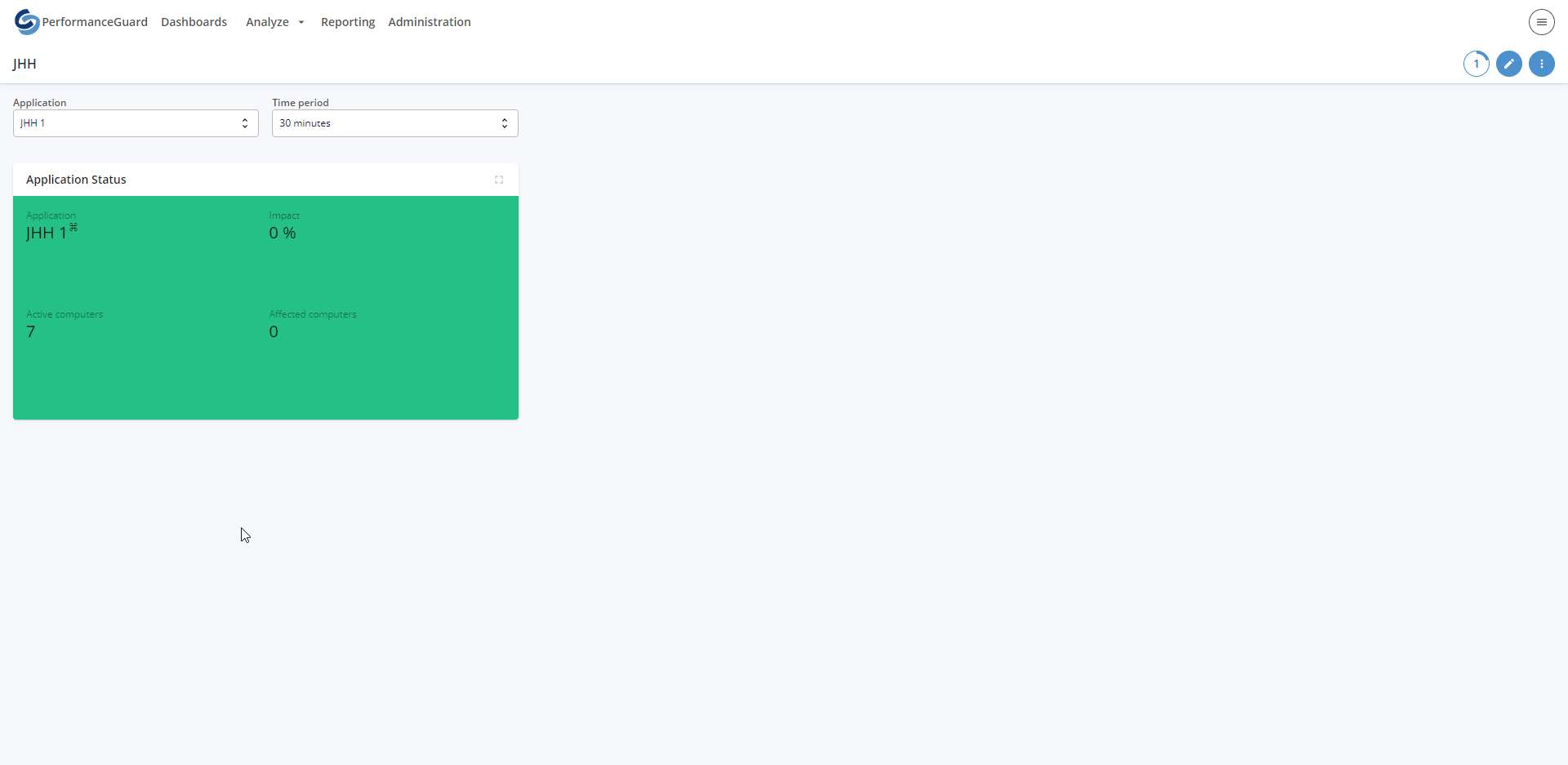

Example: Click thumbnail to view image/gif in full size.

Setup

Caution

You can only do this if you’re a PerformanceGuard administrator.

Navigate to Administration > Dashboards > Relations or on the popup menu click the then for each of the object types below setup which Dashboard to link to.

• Application links from configured Network Applications.
• Computer links from Computer Info registered in the system
• Event Rule links from Manage Thresholds and Events defined
• Location links from all Locationsdefined
• Process name links Computer Process Tablemeasured on a computer.

Important

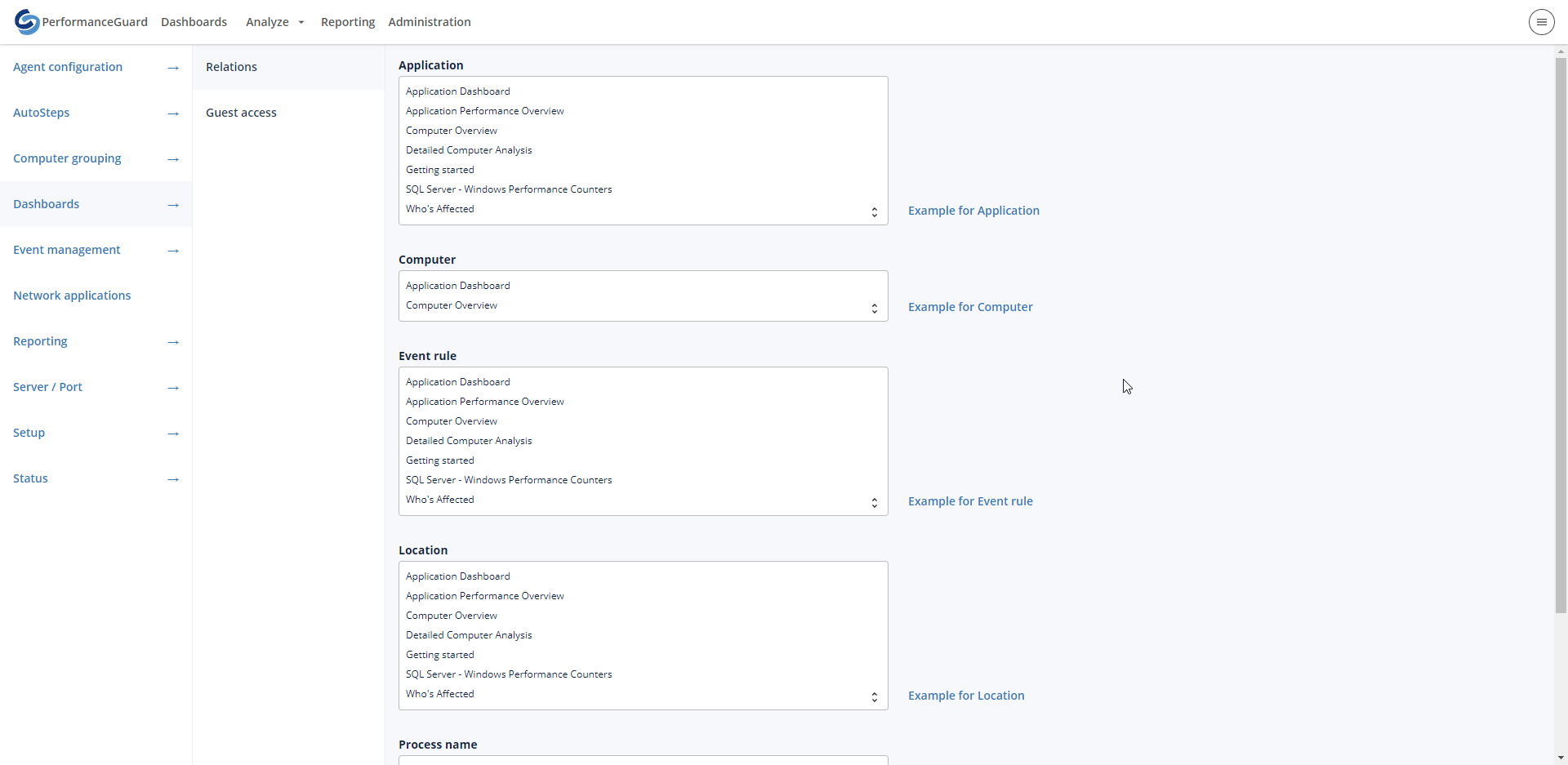

Example: Click thumbnail to view image/gif in full size.
Link to setup via popup:

Adding/removing links:
