Configure Accounts with DDM

The DDM Account configuration types set up accounts in Mail, Calendar, Contacts, Reminders, and Notes. Unlike Legacy account profiles, they don’t embed user details or passwords directly — they point to assets that hold them. This article shows which assets each account type uses, and walks through the most common setup: an Exchange account.

Before you start

• All Account types require iOS or iPadOS 15 or later, or macOS 13 or later, and work on Supervised and Unsupervised devices.
• Read DDM Assets first if you haven’t created an asset before.
• If you already deploy the account with a Legacy profile, don’t assign the DDM version to the same device. Account types apply side by side — the user would see the account twice. Remove the Legacy account from the device’s groups when you move it to DDM.

Which assets each account type uses

Account type	User identity (name, email)	Username and password	Certificate identity
Account Exchange	Asset User Identity	Asset Credential User Name And Password	Asset Credential Identity
Account Mail	Asset User Identity	Asset Credential User Name And Password (incoming and outgoing server, separately)	—
Account Google	Asset User Identity (required)	—	—
Account CalDAV	—	Asset Credential User Name And Password	—
Account CardDAV	—	Asset Credential User Name And Password	—
Account LDAP	—	Asset Credential User Name And Password	—

Exchange and Mail can also use identity assets for S/MIME signing and encryption on iOS 17 and later.

To fill in per-user values, use macros in the configuration and asset values, such as $user.fullName$, $user.email$, and $user.userPrincipalName$. Point to Supported Macros in the editor to see the list. See Apple MDM Configuration Types.

Set up an Exchange account

This example creates an Exchange account that uses modern authentication (OAuth) with Exchange Online — the typical setup for Microsoft 365.

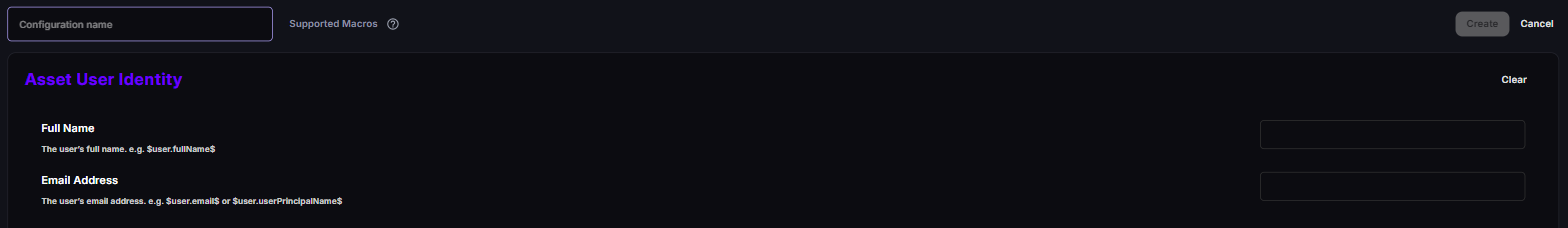

Step 1: Create the user identity asset

1. Navigate to Apple → Configurations → DDM and click New.

2. Switch to the Assets tab and select Asset User Identity.

3. Enter the user’s Full Name and Email Address. Use macros, for example $user.fullName$ and $user.email$ or $user.userPrincipalName$, to fill them in per user.



4. Save the asset, for example as DDM - Asset - User Identity.

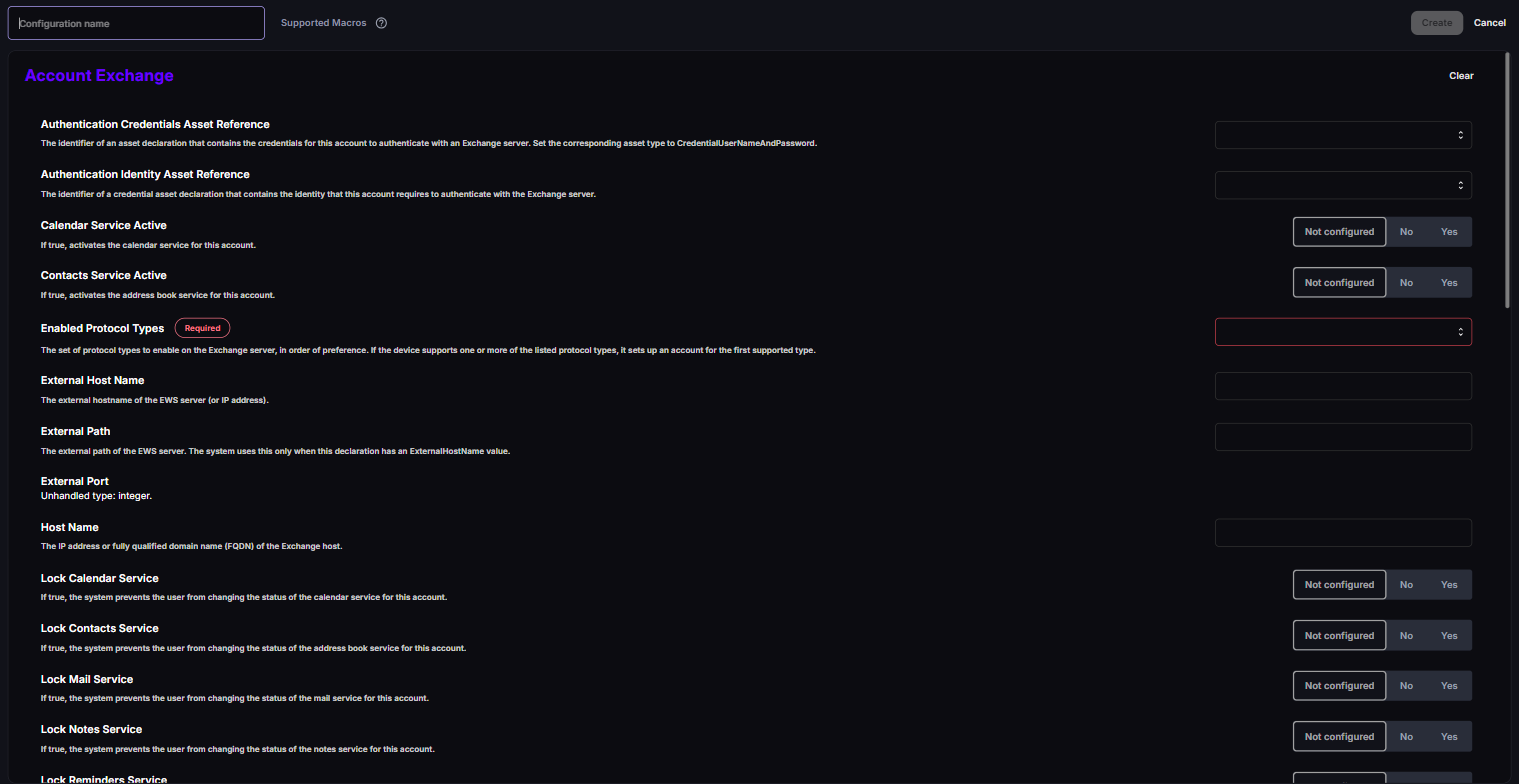

Step 2: Create the Exchange configuration

1. Navigate to Apple → Configurations → DDM and click New.
2. On the Configurations tab, select Account Exchange.
3. Fill in the fields:

Field	Value for Exchange Online	Notes
Visible Name	Work	The account name users see.
Enabled Protocol Types (required)	Exchange ActiveSync (EAS)	Select Exchange ActiveSync (EAS) for iPhone and iPad. Mac uses Exchange Web Services (EWS). You can select both, in order of preference.
Host Name	outlook.office365.com
User Identity Asset Reference	DDM - Asset - User Identity	Fills in the user’s name and email address.
OAuth → Enabled	Yes	Uses modern authentication. The user signs in once with their Microsoft account.
OAuth → Sign In URL	Leave empty	Only needed for custom identity providers. When set, the device doesn’t use autodiscovery.
Mail / Contacts / Calendar / Reminders / Notes Service Active	Yes / Yes / Yes / Yes / No	Which services the account syncs. All are on by default.
Lock Mail / Contacts / Calendar Service	Yes	Prevents the user from turning a service off. iOS only, EAS only.

4. Save the configuration, select the Assignment tab, and assign it to your group.

The user sees a sign-in prompt for the account the first time they open Mail.

Option: certificate-based authentication

For on-premises Exchange with certificate authentication:

1. Create an Asset Credential Identity with the user’s PKCS #12 file. Check that the asset is offered in Authentication Identity Asset Reference. SCEP and ACME assets aren’t offered for this field.
2. In the Exchange configuration, leave OAuth off and set Authentication Identity Asset Reference to that asset.
3. Set Host Name to your Exchange server.

Option: S/MIME (iOS 17 and later)

1. Create an identity asset for signing and, if needed, one for encryption.
2. In the Exchange configuration, open S/MIME → Signing, set Enabled to Yes, and select the asset in Identity Asset Reference.
3. Open S/MIME → Encryption, set Enabled to Yes, and select the asset in Identity Asset Reference. Set Per-Message Switch Enabled to Yes if users should be able to choose per message.

S/MIME in DDM is supported for EAS accounts on iPhone and iPad only.

Other account types

Account Mail (IMAP or POP)

Field	Required	What to enter
Visible Name	No	Account name users see.
User Identity Asset Reference	No	Asset User Identity with name and email.
Incoming Server → Server Type	Yes	IMAP or POP.
Incoming Server → Host Name	Yes	For example imap.example.com. The Port field can’t be set in CapaOne today, so the device uses the default port for the server type.
Incoming Server → Authentication Method	Yes	None, Password, CRAMMD5, NTLM, or HTTPMD5.
Incoming Server → Authentication Credentials Asset Reference	Required unless the method is None	Asset Credential User Name And Password. Leave it empty when Authentication Method is None.
Incoming Server → IMAP Path Prefix	No	IMAP only.
Outgoing Server → Host Name / Authentication Method	Yes	For example smtp.example.com. The Port field can’t be set in CapaOne today.
Outgoing Server → Authentication Credentials Asset Reference	Required unless the method is None	Can be the same asset as incoming.

Account CalDAV and Account CardDAV

Field	Required	What to enter
Visible Name	No	Account name users see.
Host Name	Yes	Server host name or IP address.
Port	No	For example 443.
Path	No	The principal URL path, if your server needs it.
Authentication Credentials Asset Reference	No	Asset Credential User Name And Password.

Account LDAP

Field	Required	What to enter
Visible Name	No	Account name users see.
Host Name	Yes	LDAP server host name or IP address.
Port	No	For example 636 for LDAPS.
Authentication Credentials Asset Reference	No	Asset Credential User Name And Password, for servers that don’t allow anonymous binds.
Search Settings	Recommended	One or more search bases, for example ou=people,dc=example,dc=com, with a scope of Base, One level, or Subtree (default). macOS only uses the first one.

Account Google

Field	Required	What to enter
Visible Name	No	Account name users see.
User Identity Asset Reference	Yes	Asset User Identity with the user’s Google email address. The user signs in to Google on the device.

Good to know

• Accounts apply side by side — Account types are multiple types, so two configurations create two accounts. Assign each account from one group only. See How Multiple DDM Configurations Combine.
• Change the asset, not the account — updating a password or certificate asset updates every account that references it, without recreating the account.
• Removing the configuration removes the account — including its locally synced mail, contacts, and calendars on the device. Data stays on the server.
• EWS settings are Mac only — path and external host settings for EWS are ignored on iPhone and iPad. The Port and External Port fields can’t be set in CapaOne today.
• Source: Apple’s Account declarations in the device management schema (Release v27.0).
