Integrate CapaOne with Entra ID

  1. Navigate to https://portal.azure.com/#home

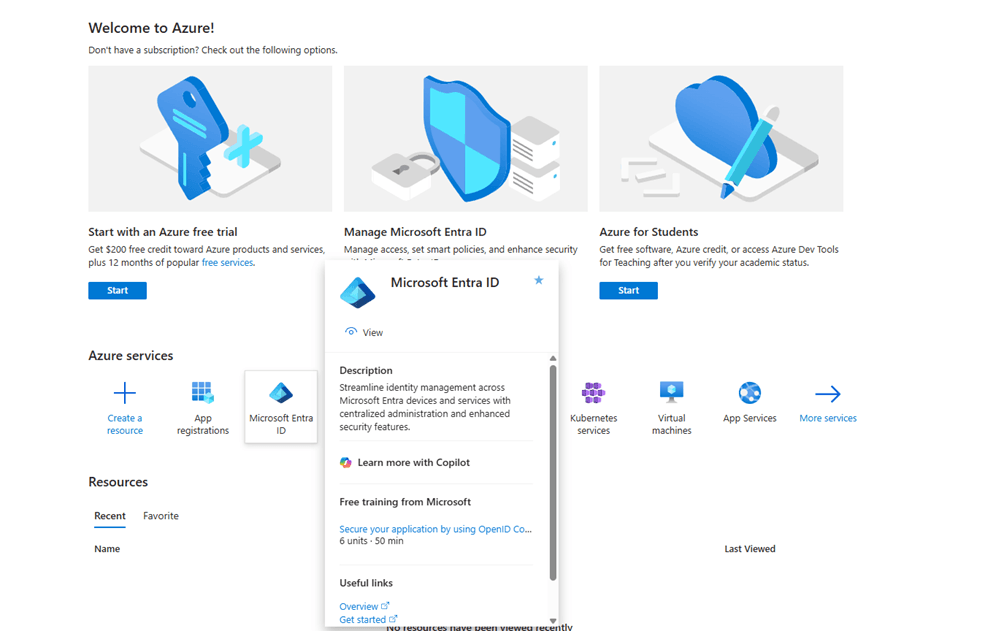

  2. Click Microsoft Entra ID

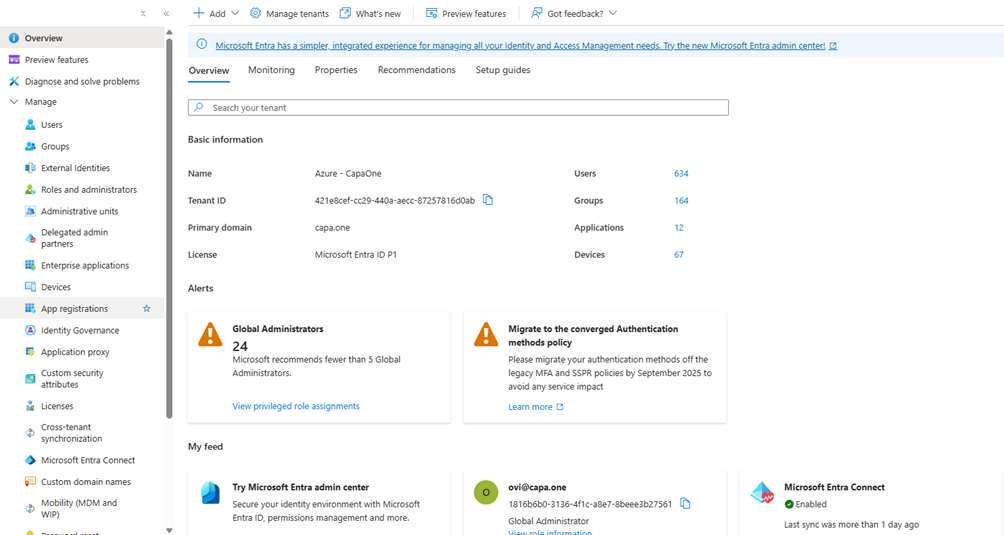

  1. Click App registrations

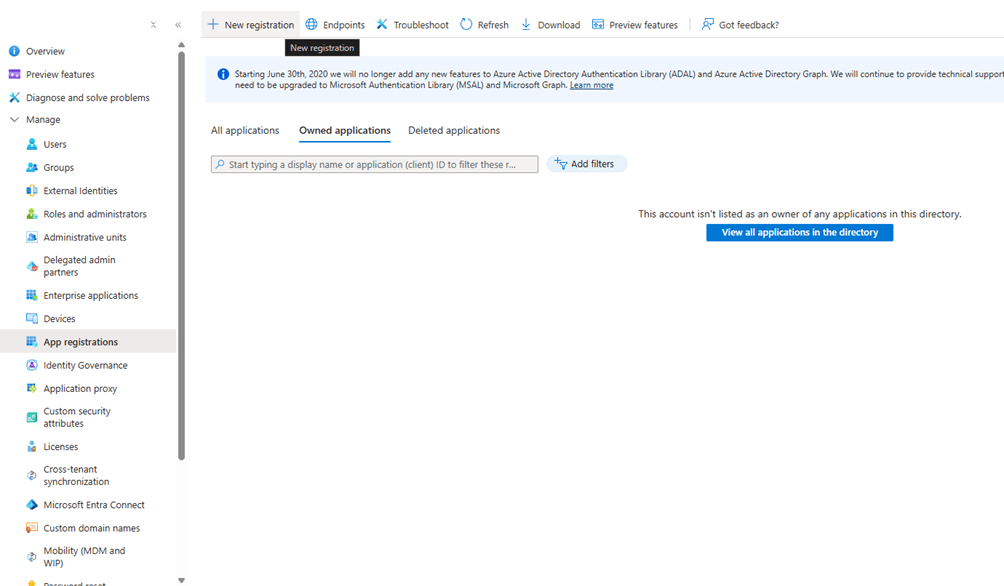

  1. Click New registration

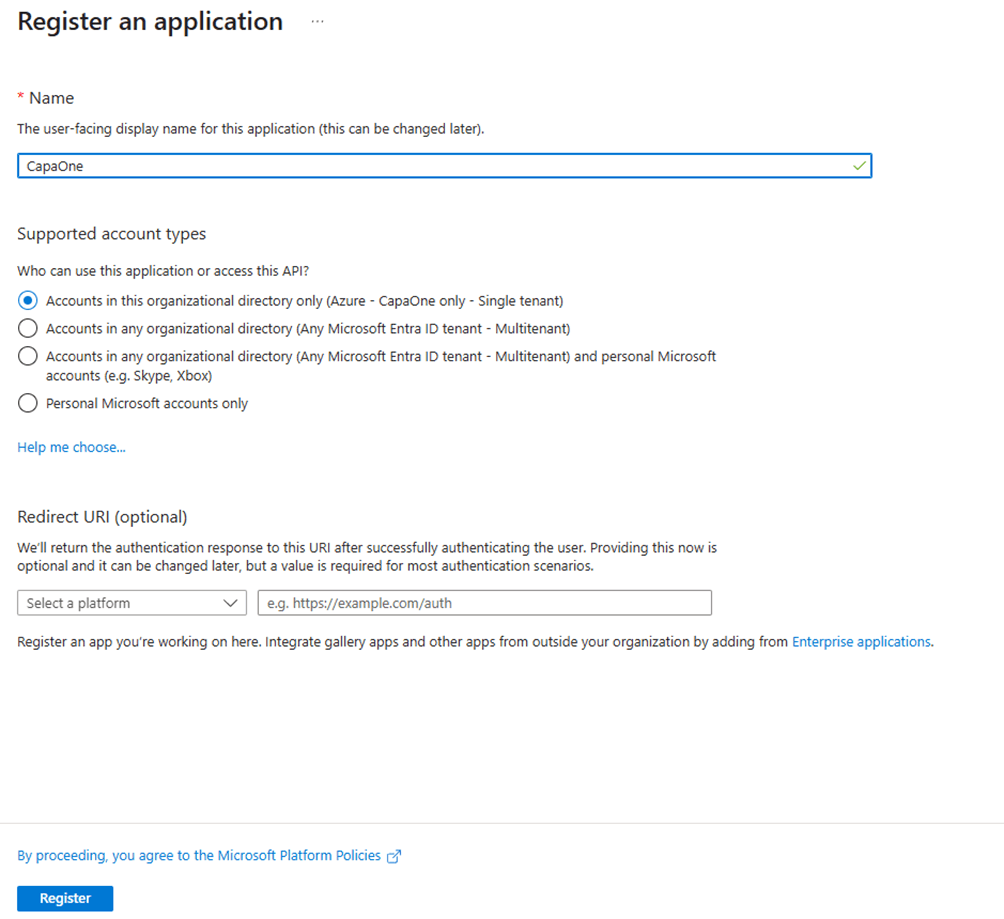

  1. Provide a name and select what organizational directory should be synced and click Register at the bottom of the page

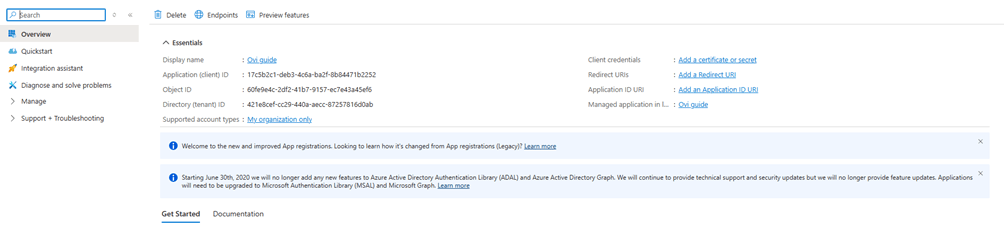

  1. Click on Add a certificate or secret

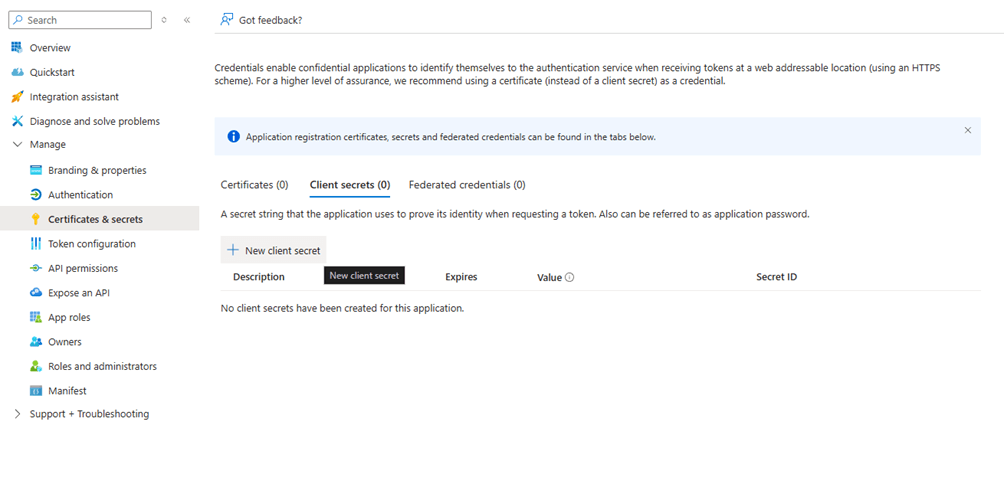

  1. Click on New client secret

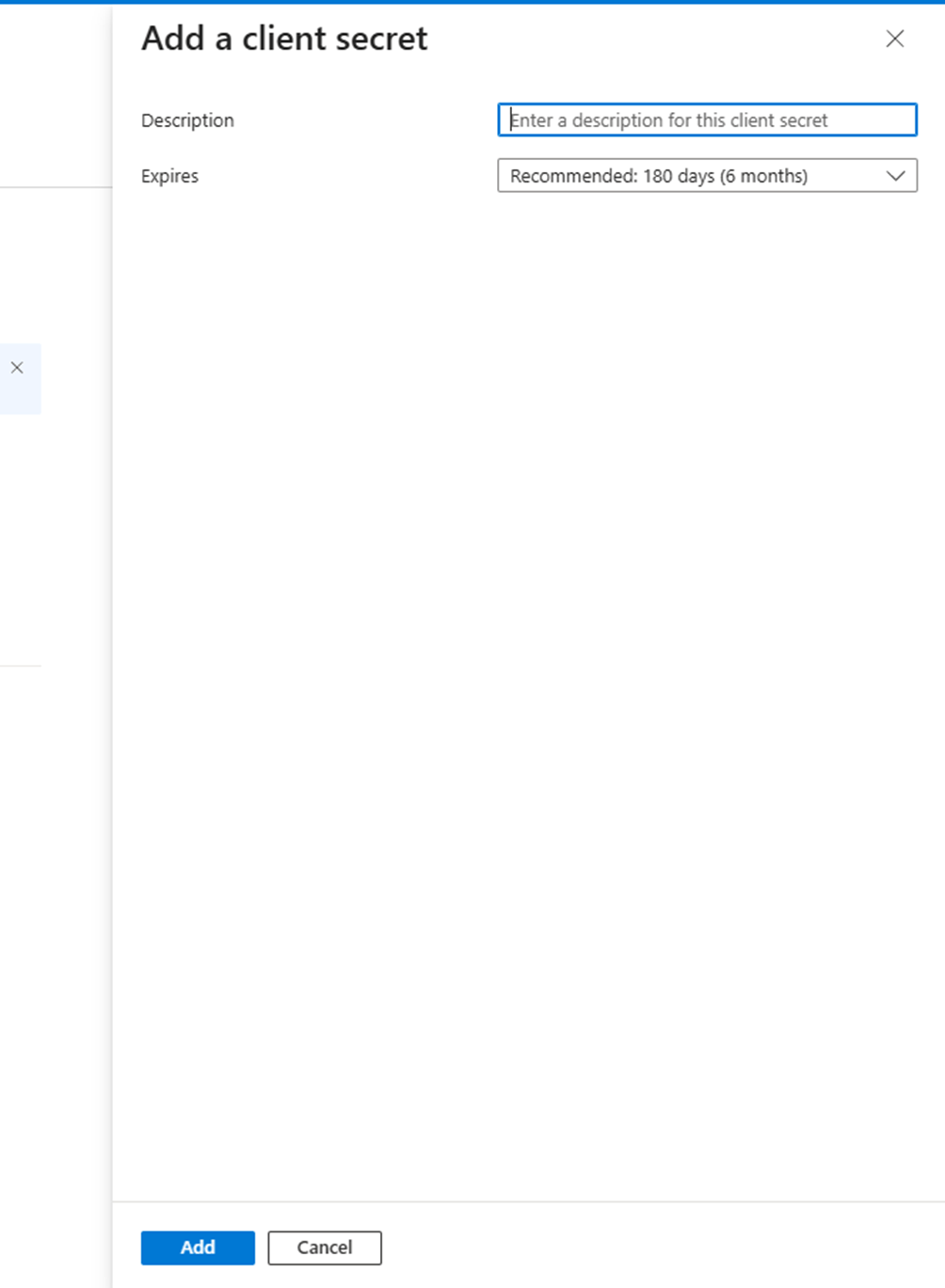

  1. Provide a description (not required) and set an expiration date. We suggest setting it to 24 months. Afterwards click Add at the bottom of the page

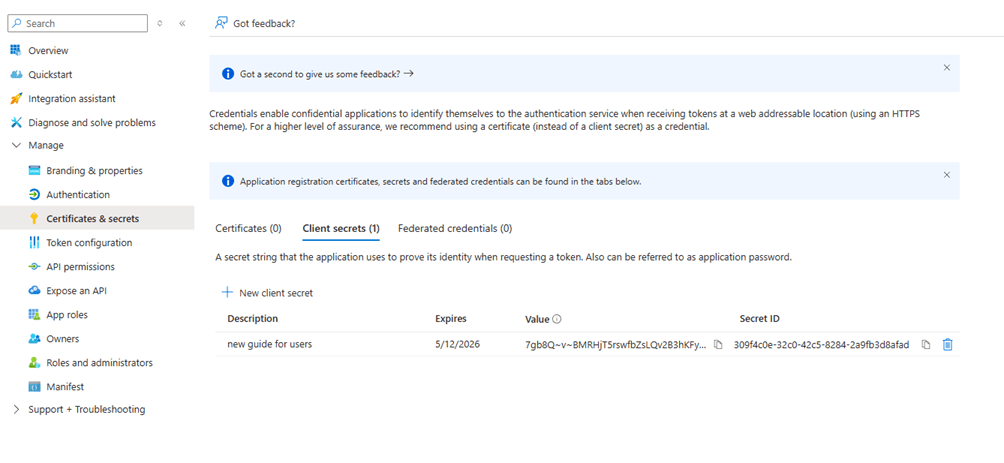

  1. After the client secret is created you need to copy the value and save it in a notepad. If you refresh or leave the page you will have to create a new client secret

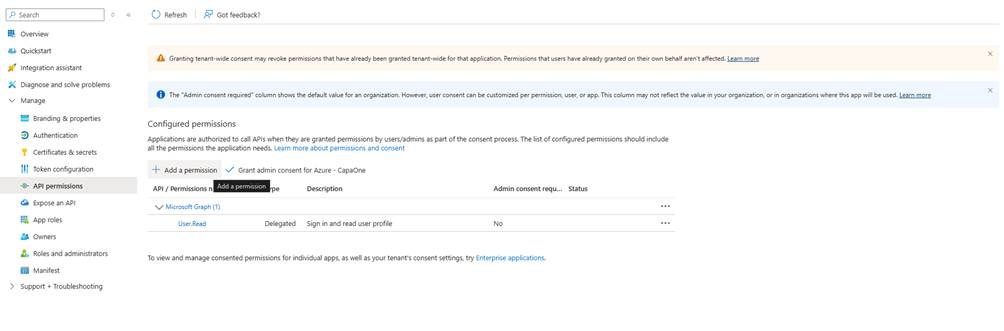

10.   Click on API permissions in the sidebar and then Add a permission

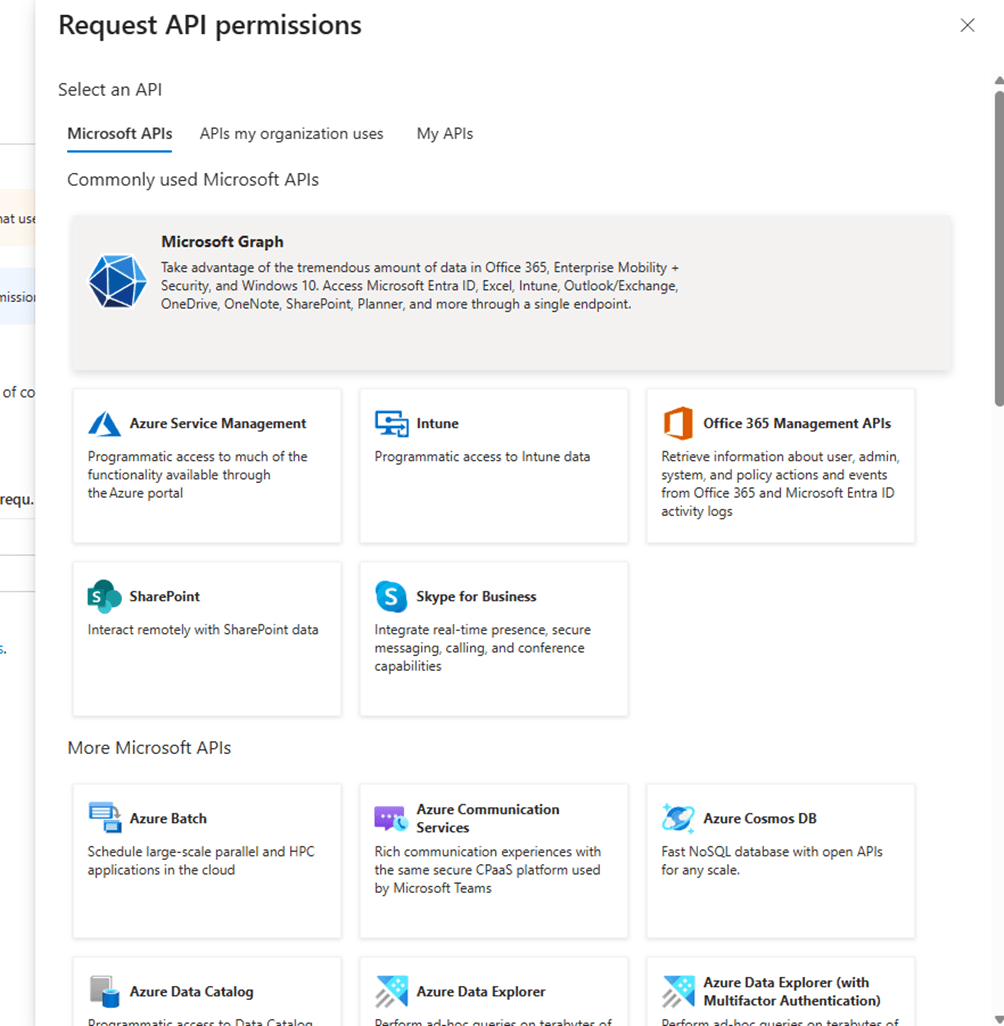

11.   Select Microsoft Graph

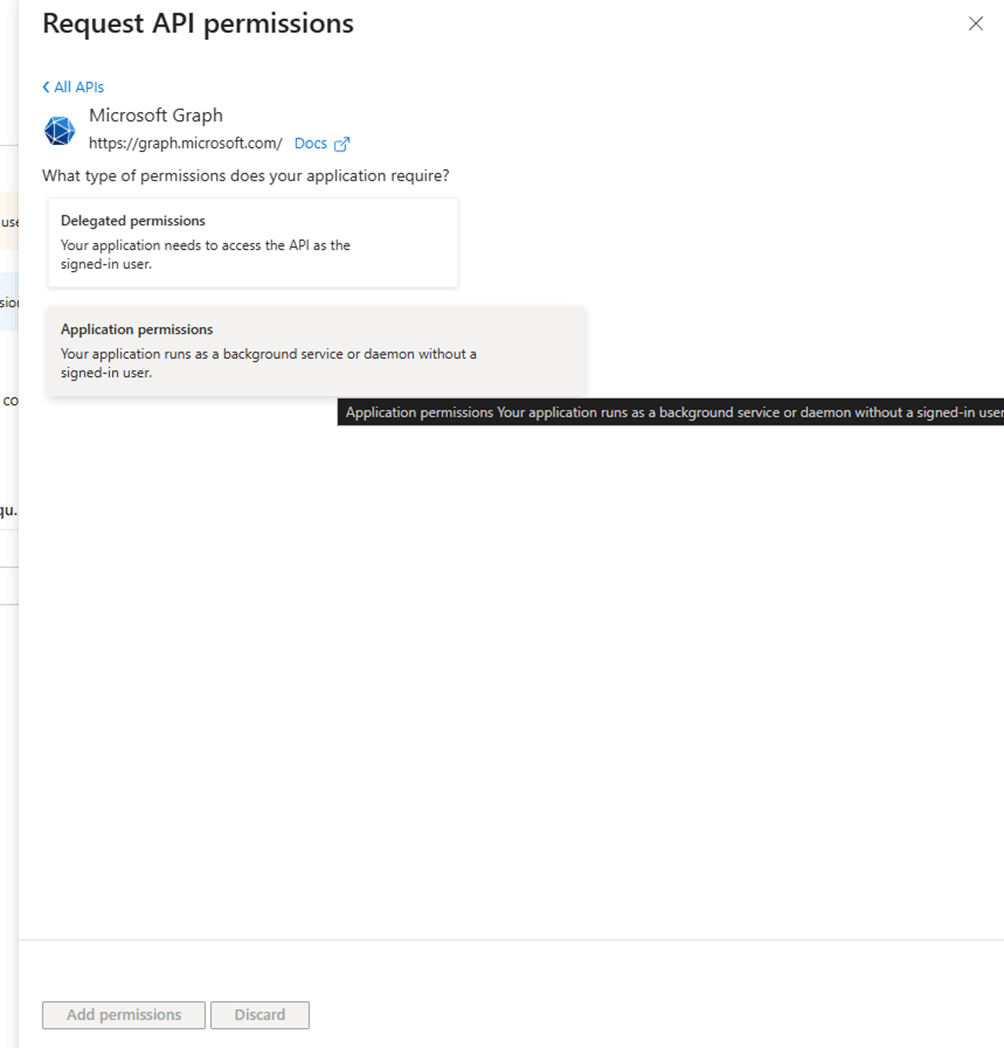

12.   Select Application permissions

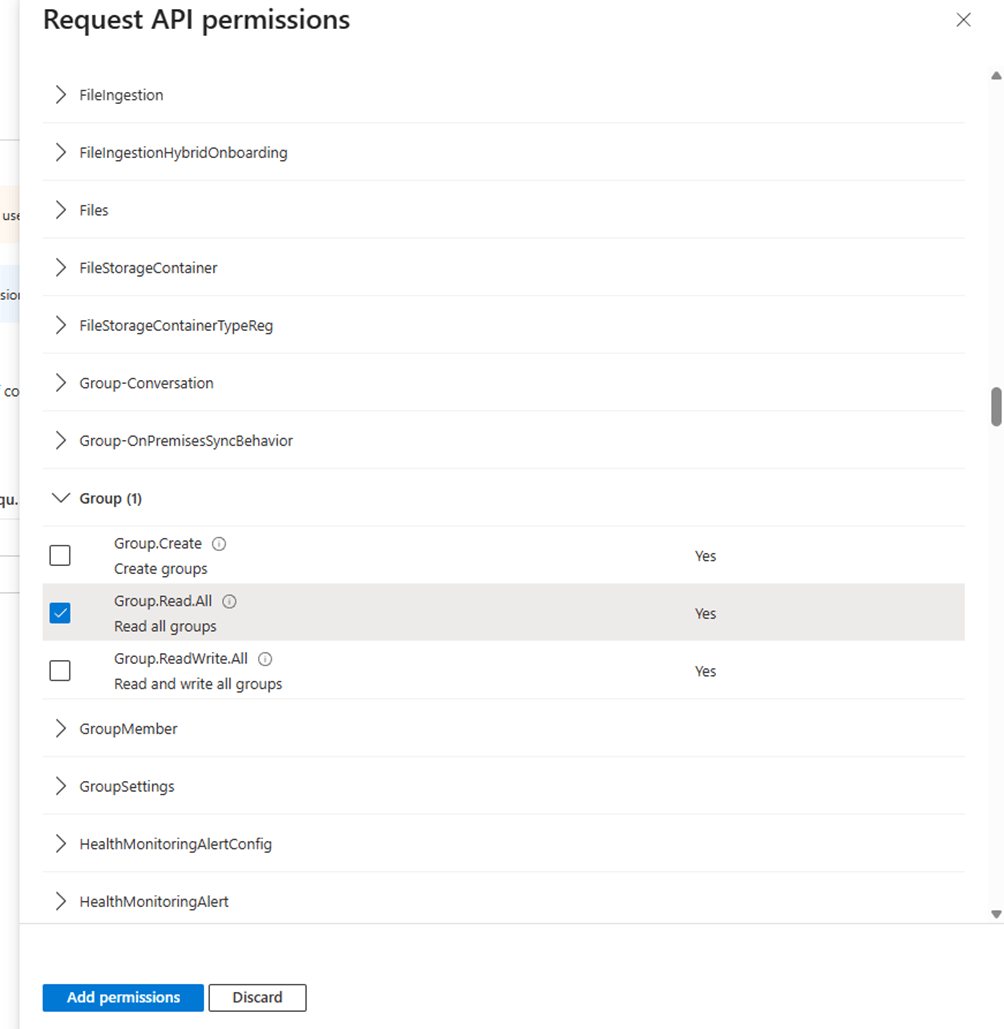

13.   Scroll down and expand Group and set a checkmark in Group.Read.All and then Add permissions at the bottom of the page

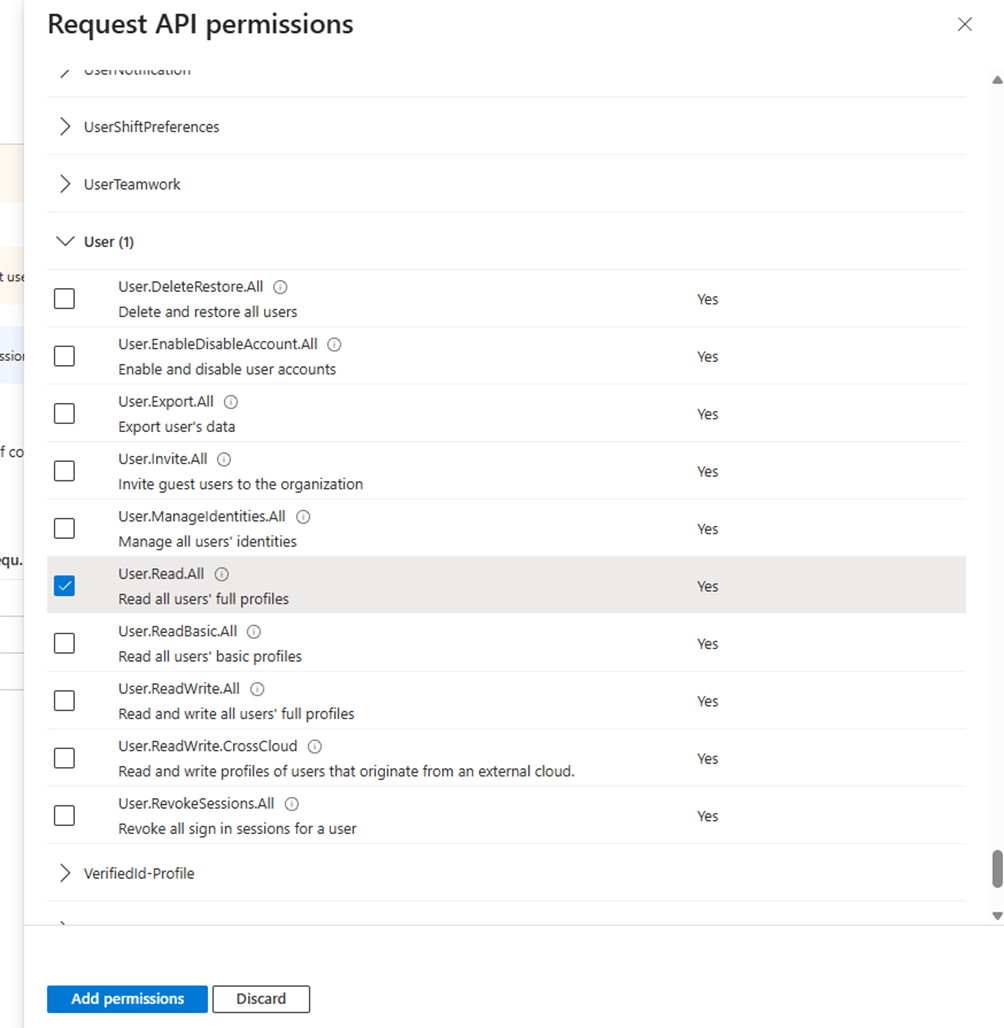

14.   Go through the same permission steps and set a checkmark in User for User.Read.All and Add permissions

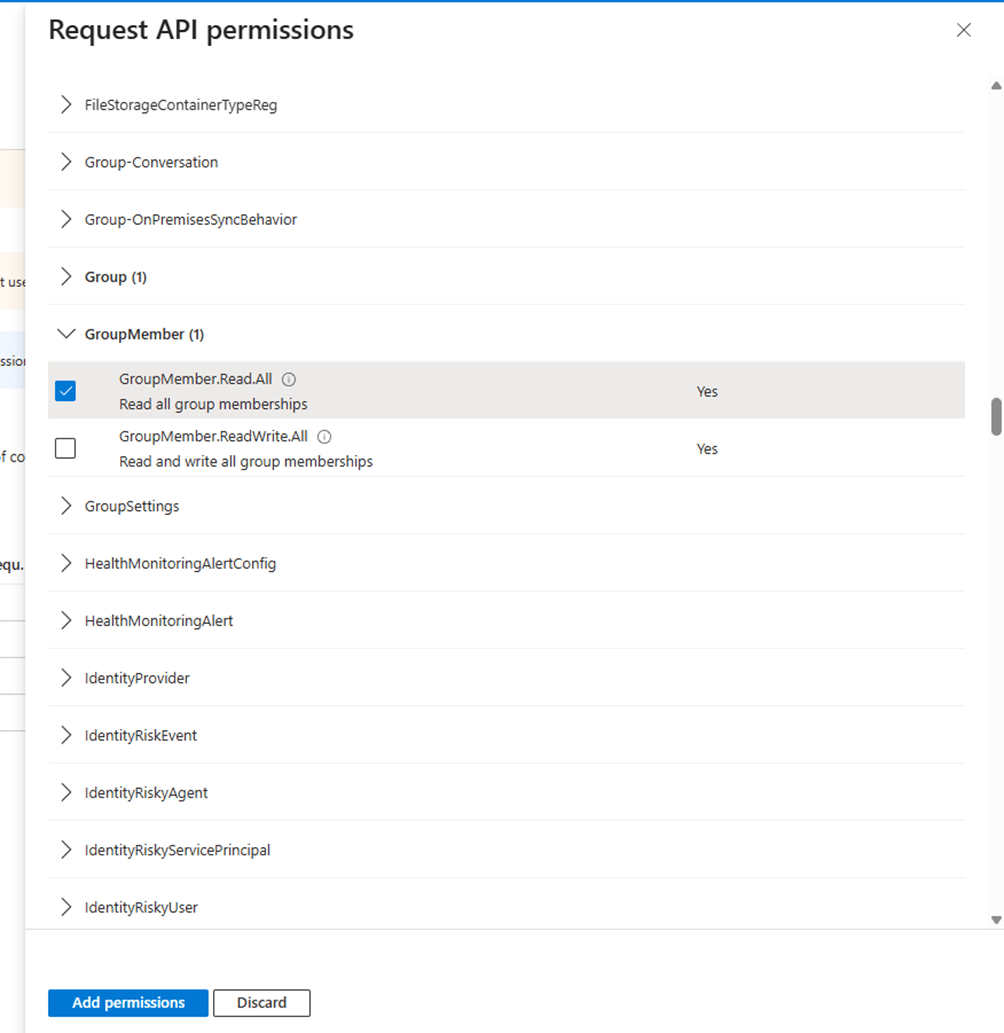

15.   Go through the same permission steps and set a checkmark in GroupMember for GroupMember.Read.All and Add permissions

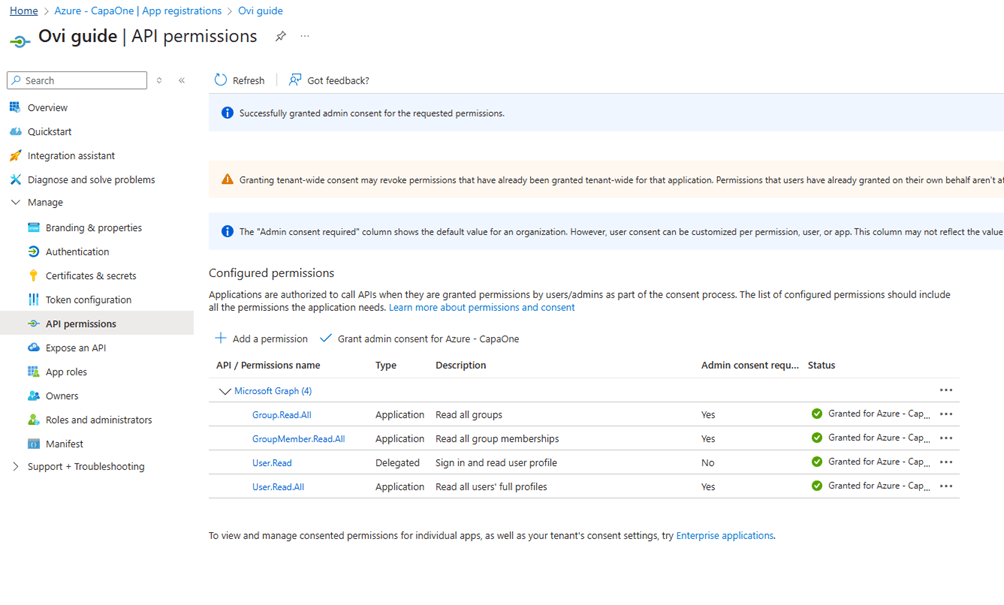

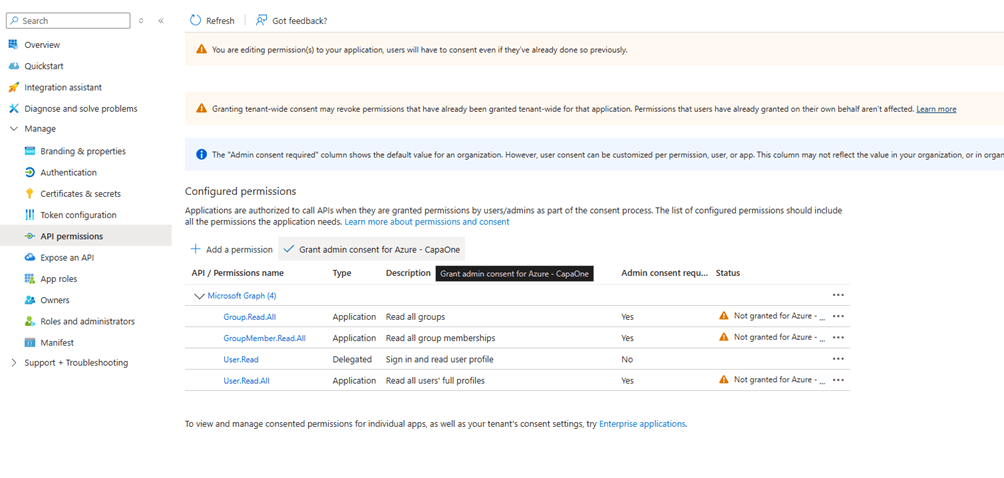

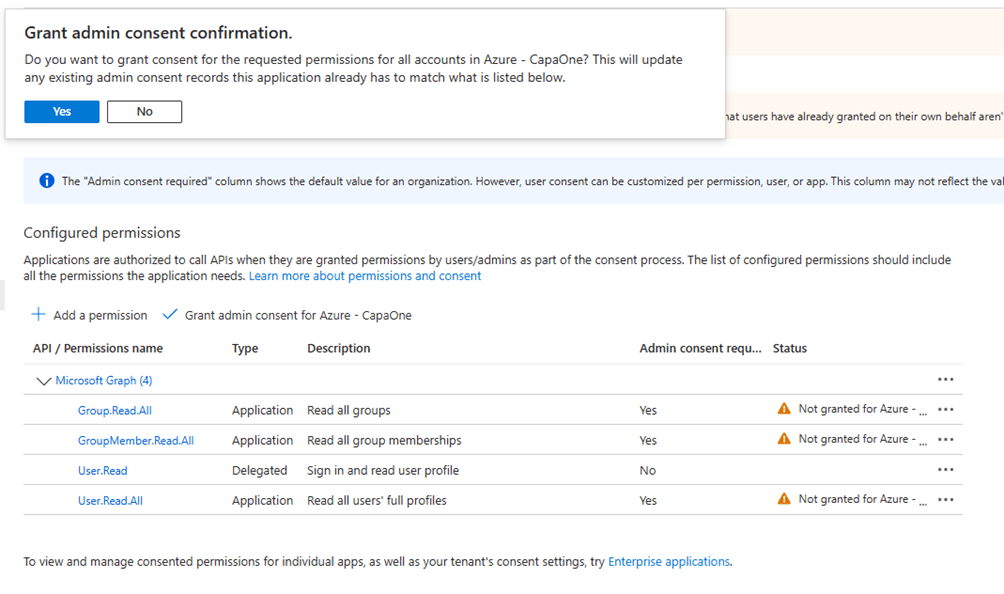

16.   Click on Grant admin consent for (name of directory)


17.   Click Yes to the popup


18.   Click on Home in the upper left corner


19.   Click on Microsoft Entra ID


20.   Click on App registrations in the left pane


21.   Copy the Application client ID to your notepad

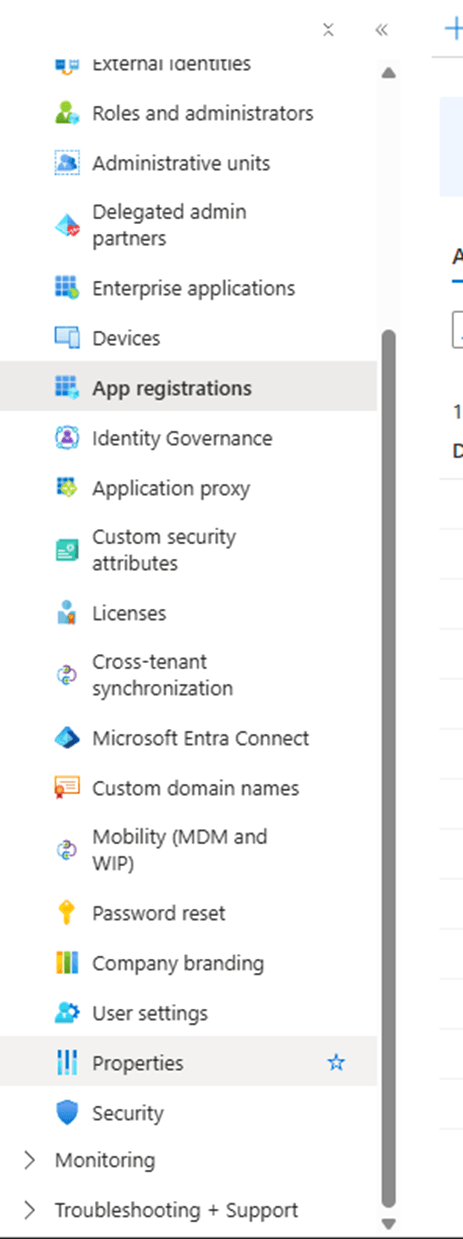

22.   Click on Properties in the left pane

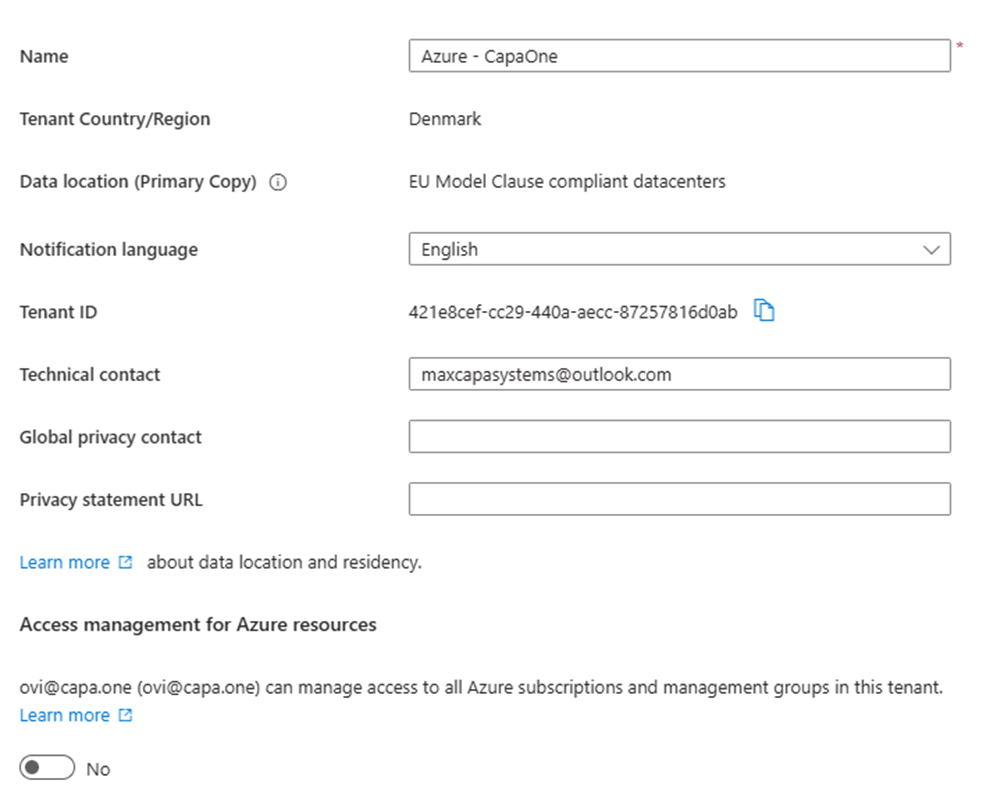

23.   Copy the tenant ID to your notepad


24.   Go to the CapaOne Management portal and select integrations in the left pane


25.   Click on New to create a new integration

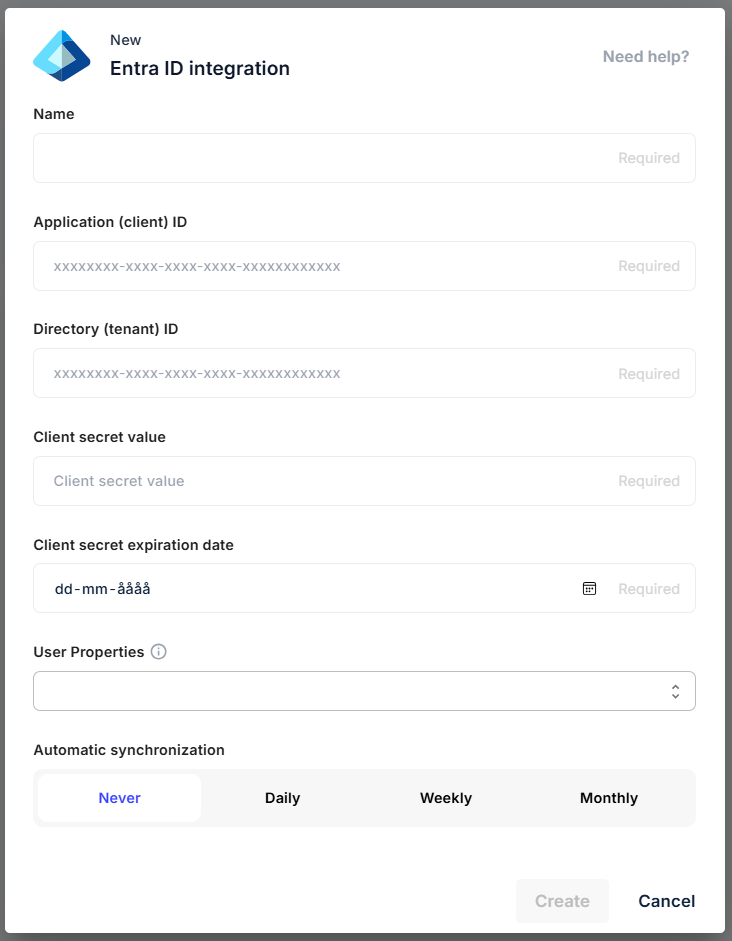

26.   Provide the following information for the new Entra ID integration

Name

Application Client ID

Tenant ID

Client secret value

(In your notepad you should have Tenant ID, Application ID and Client Value)

Then select a synchronization schedule and click on Create


27.   If you click on the 3 dots to the right of the newly created integration you can do the following

  • Edit
  • Sync now
  • View integration
  • Delete


28.   Click on Sync now

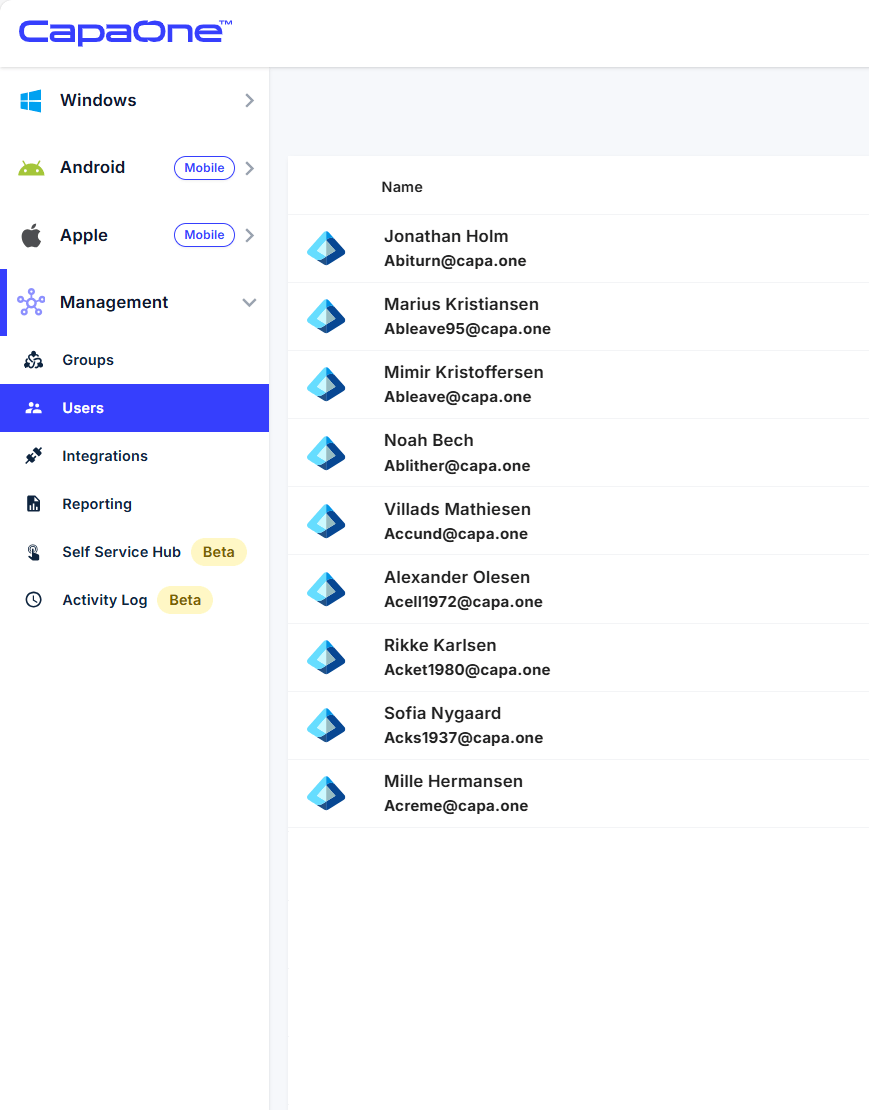

29.   When the sync is done, click on Users in the left pane and the users from the Entra ID will have a Entra icon to the left of their name
